KV25 45° Corner Mount (2 x Part)
For mounting KV25 loudspeakers in the corners of vertical planar surfaces, at 45° horizontal and client-specified vertical offset angles.

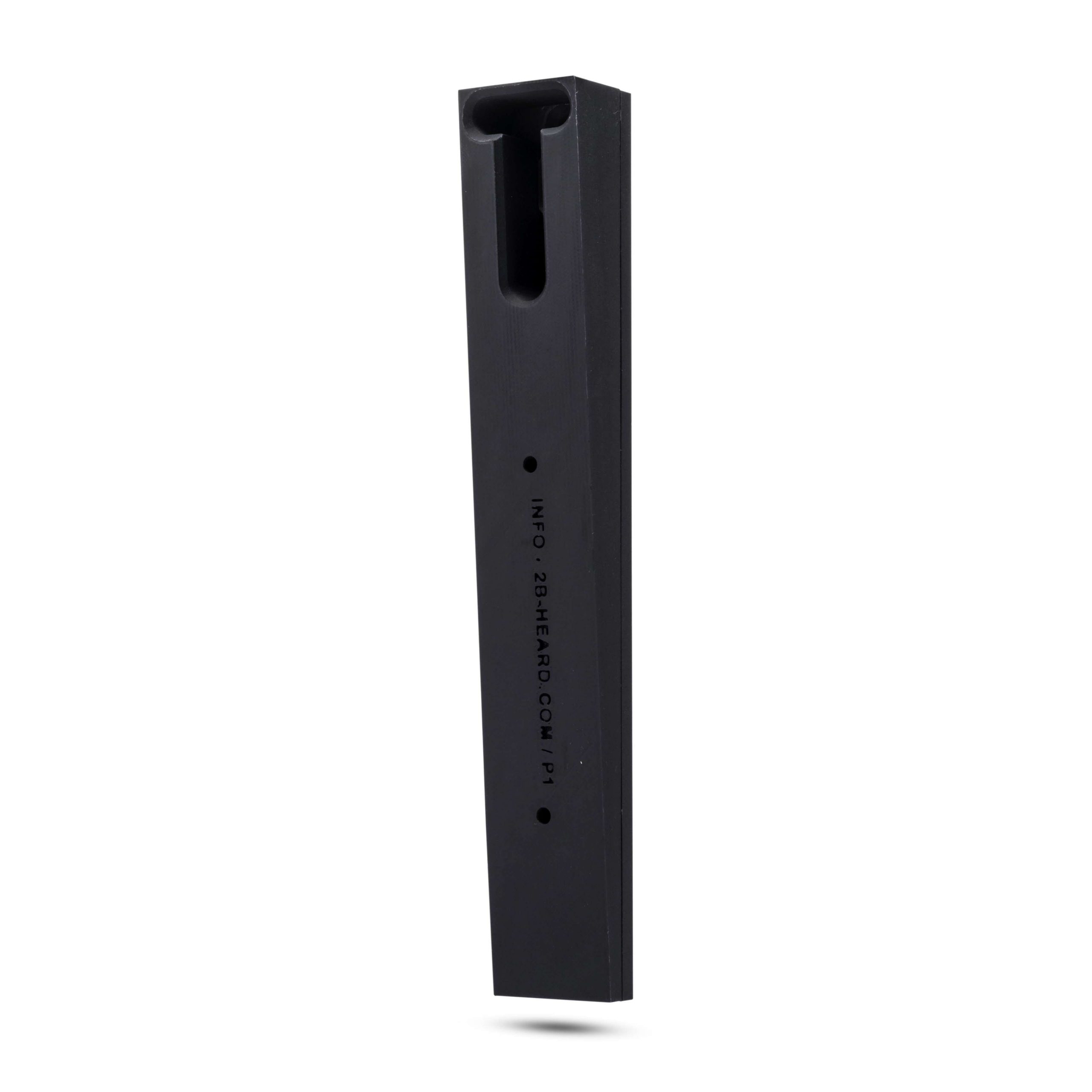

Corner-mount bracket for Vyper KV25: 260mm x 40mm x 30mm @ 10g

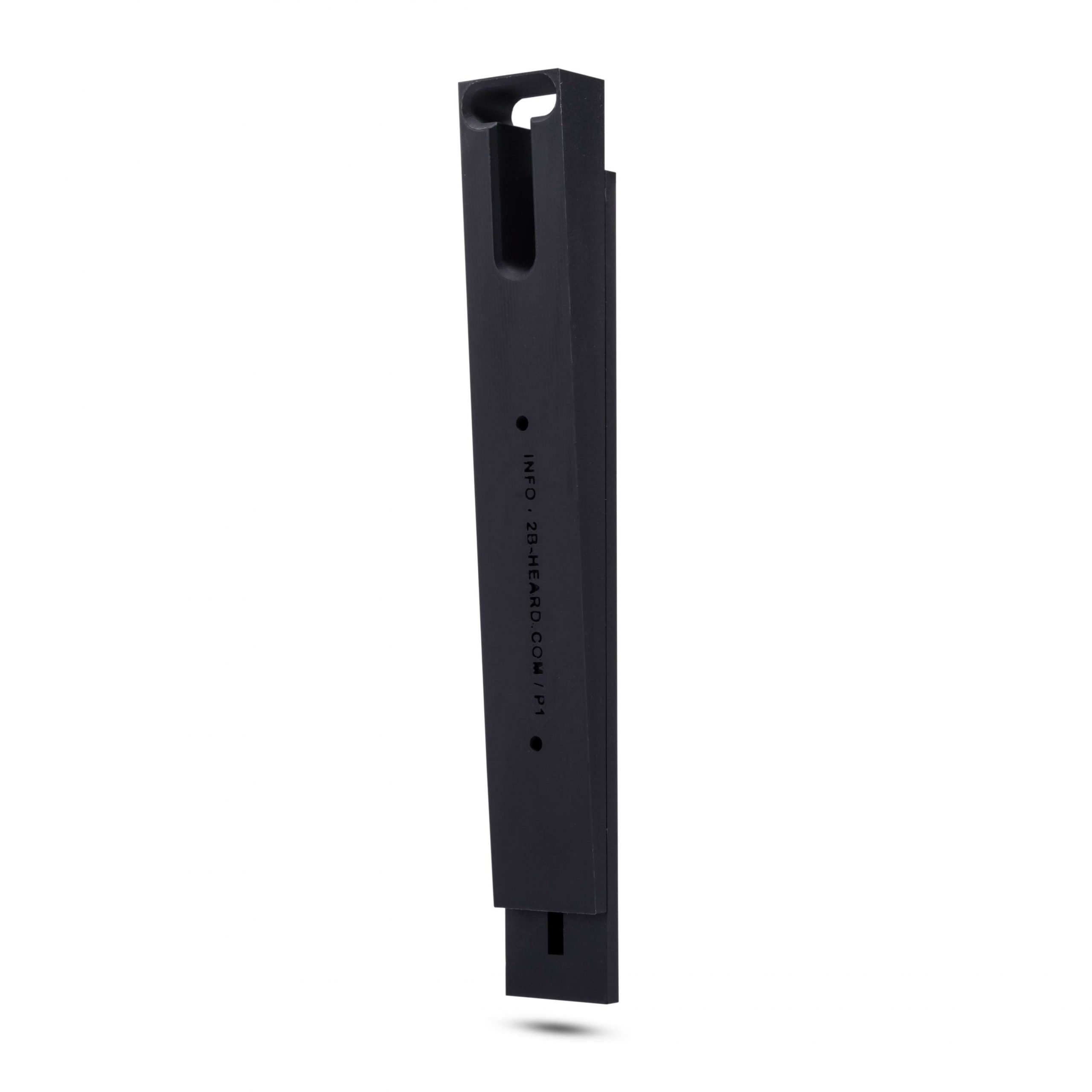

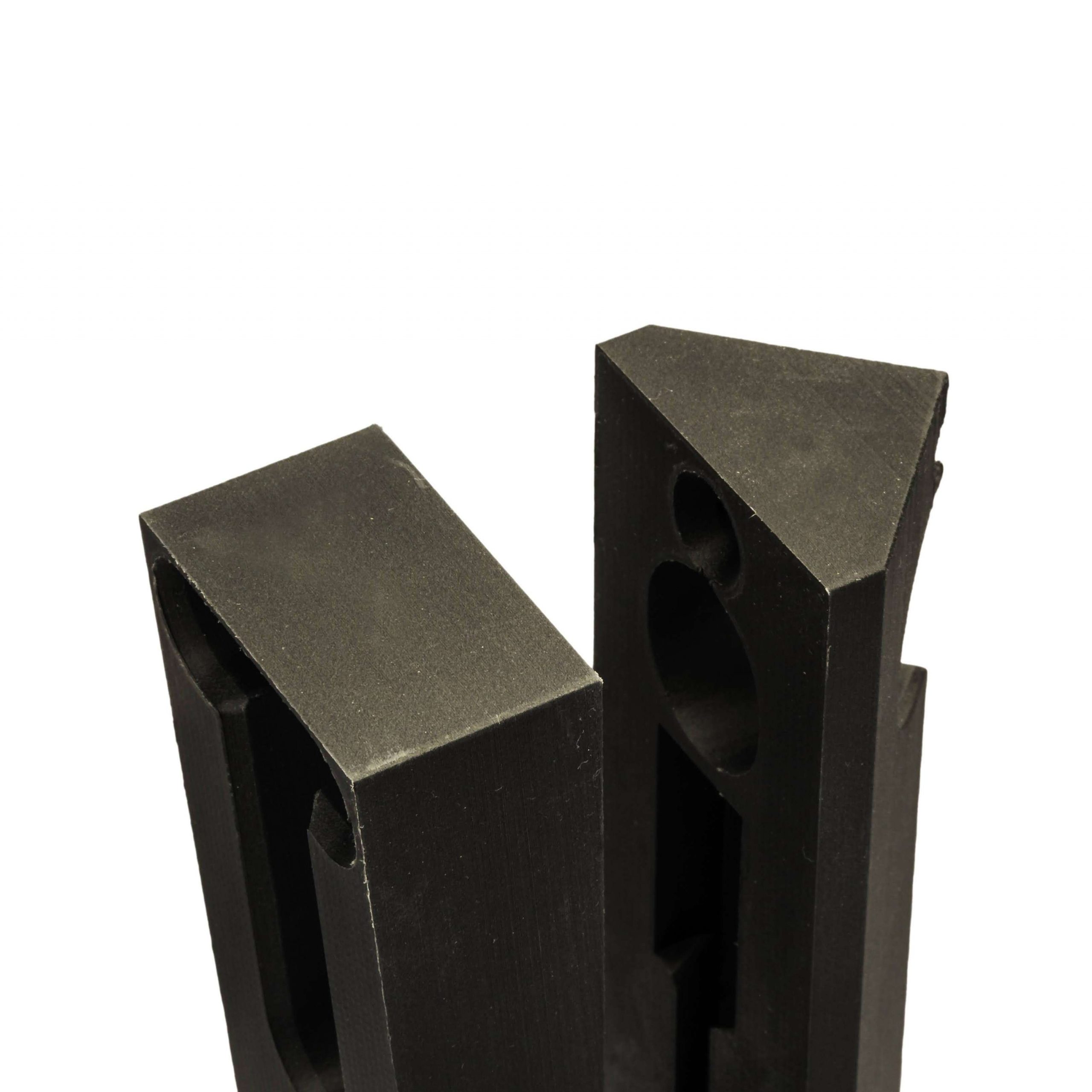

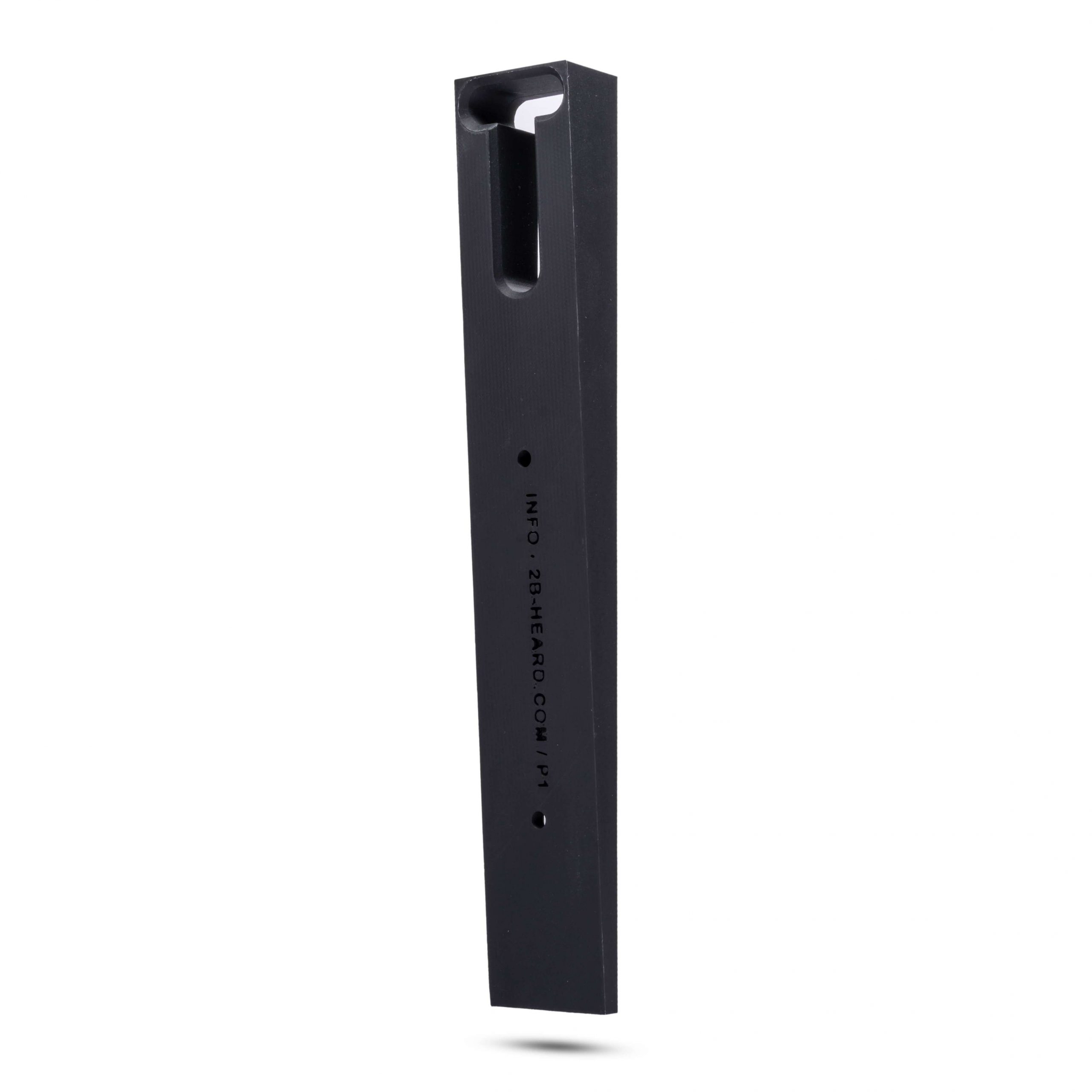

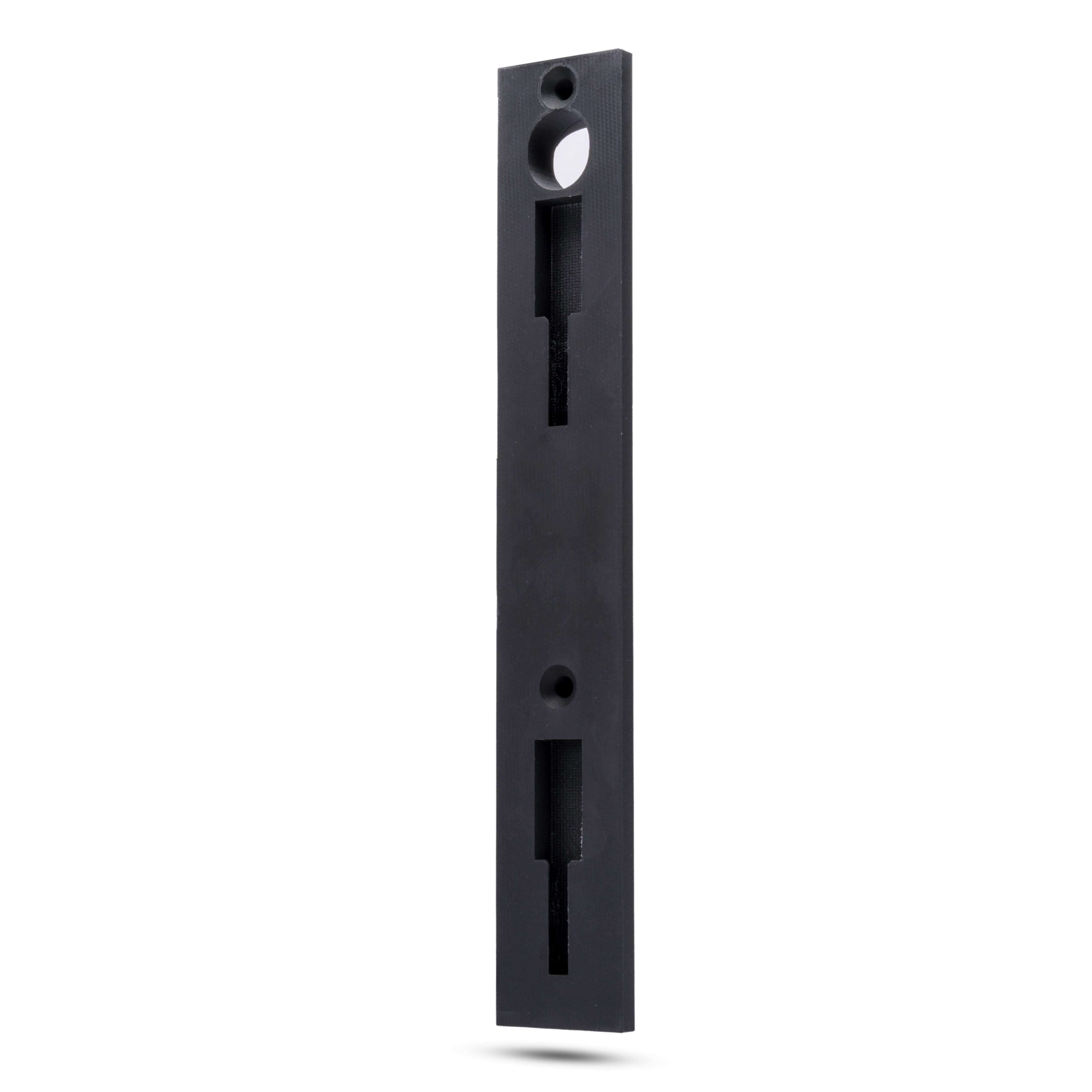

A back-plate with a 90° triangular rear sits vertically in the corner between two walls and is secured with screws. A separate front plate is fitted to the loudspeaker – and then the loudspeaker and front plate assembly slides into a locking channel on the backplate. Removal of KV25’s front grille (Torx T10 screws) reveals a pair of M5 mounting holes. The loudspeaker can be fixed to the bracket with 4mm∅ / Imperial size 8 screws (NOT supplied).
When ordering, please specify:
* Vertical tilt angle (horizontal is fixed at 45°)
* Colour (if ordering the RAL option)
