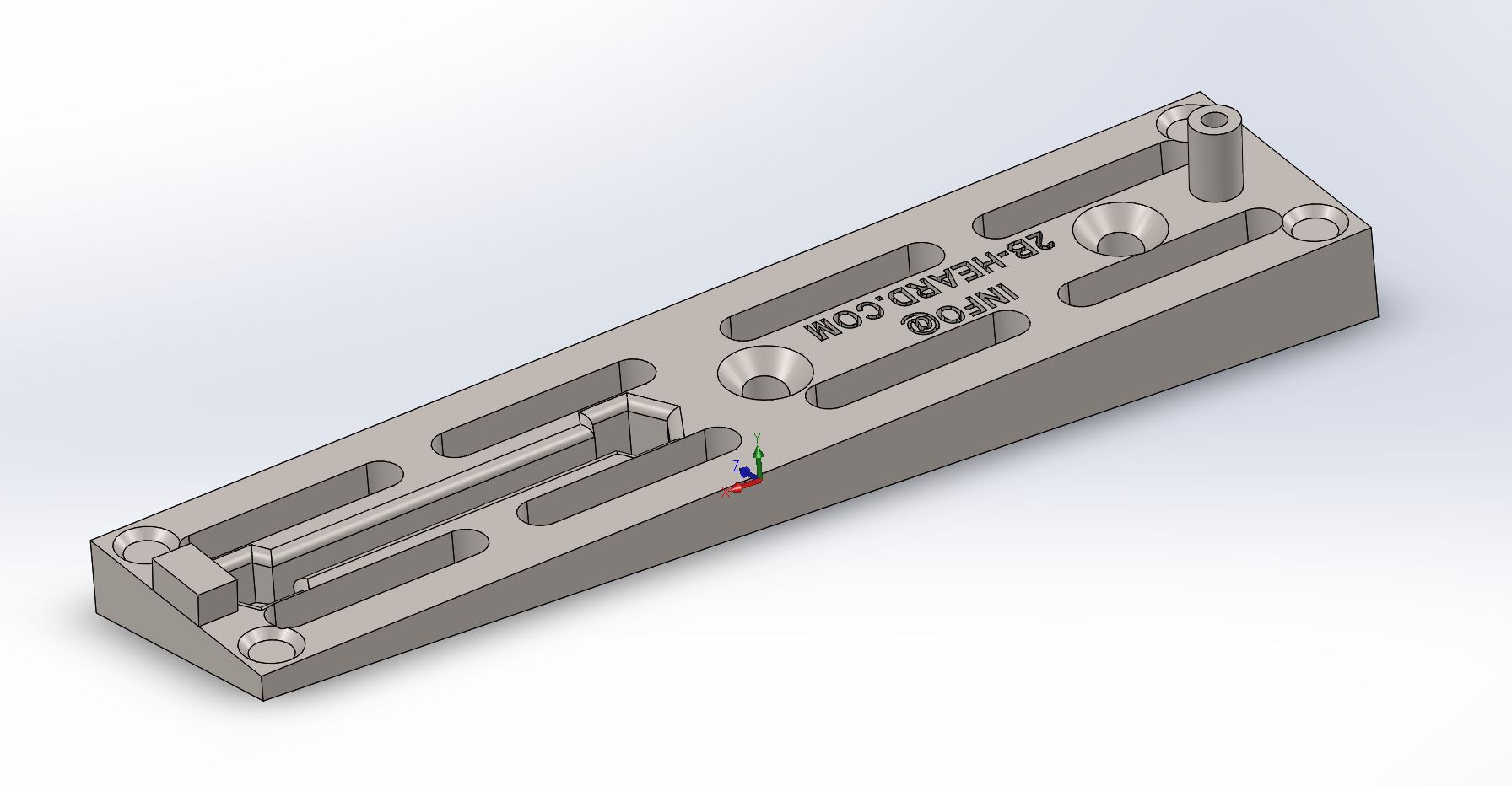

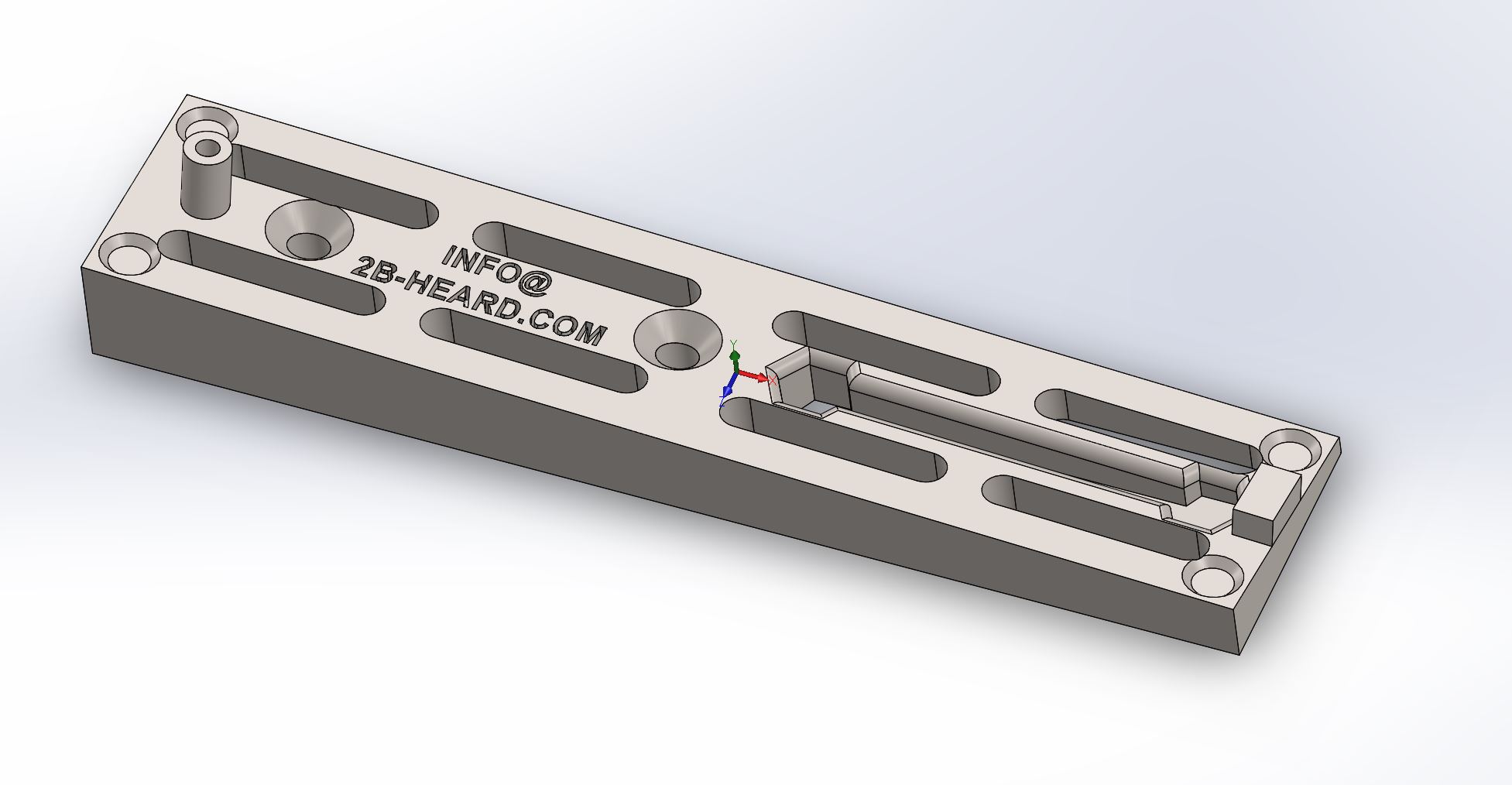

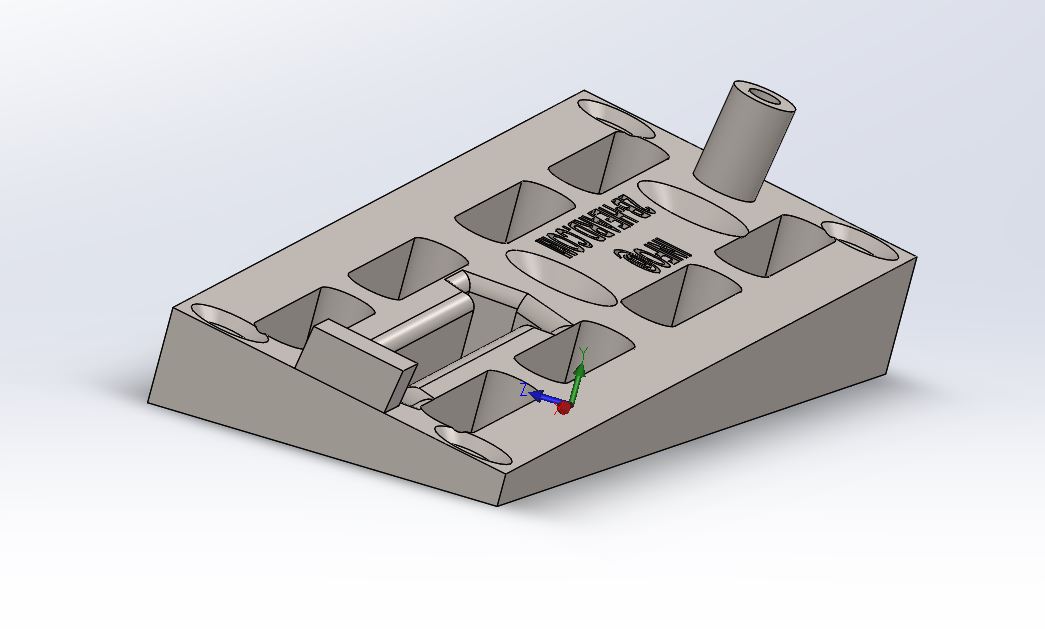

KZ14 Wedge Mount (1 x part)

Wall mount wedge for mounting KZ14 loudspeakers onto planar surfaces. One-part bracket & loudspeaker fit to wall together as one.

100mm x 22mm x ¹15.1mm @ 9g
Removal of KZ14’s front grille reveals one mounting hole through which the loudspeaker can be fixed through the bracket and into a surface with a 4mm∅ / Imperial size 8 screw (NOT supplied). The other end is held securely in-place by the bracket’s integral retaining-lug.

When ordering, please specify:
* Horizontal pan angle
* Vertical tilt angle
* Colour (if ordering the RAL option)
¹Depth dimensions of bracket determined by offset angles
