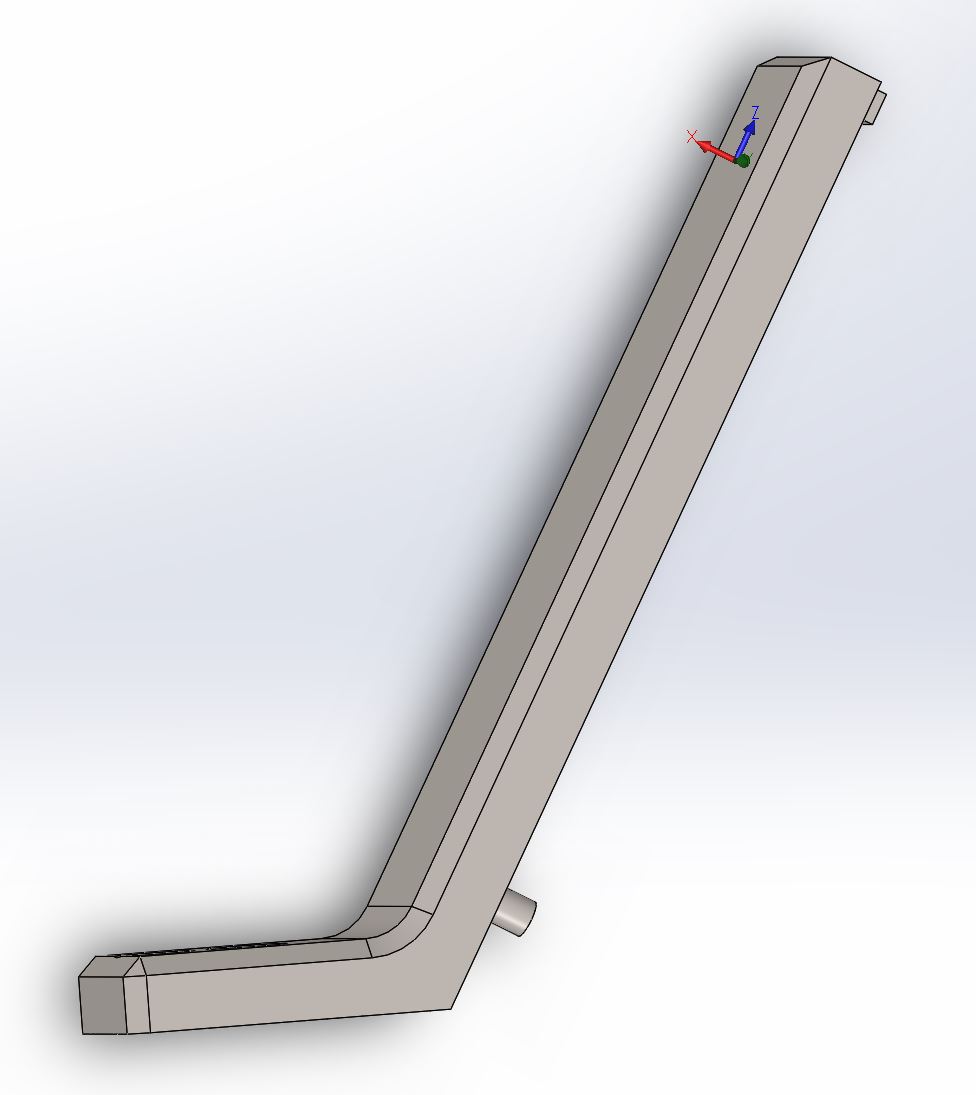

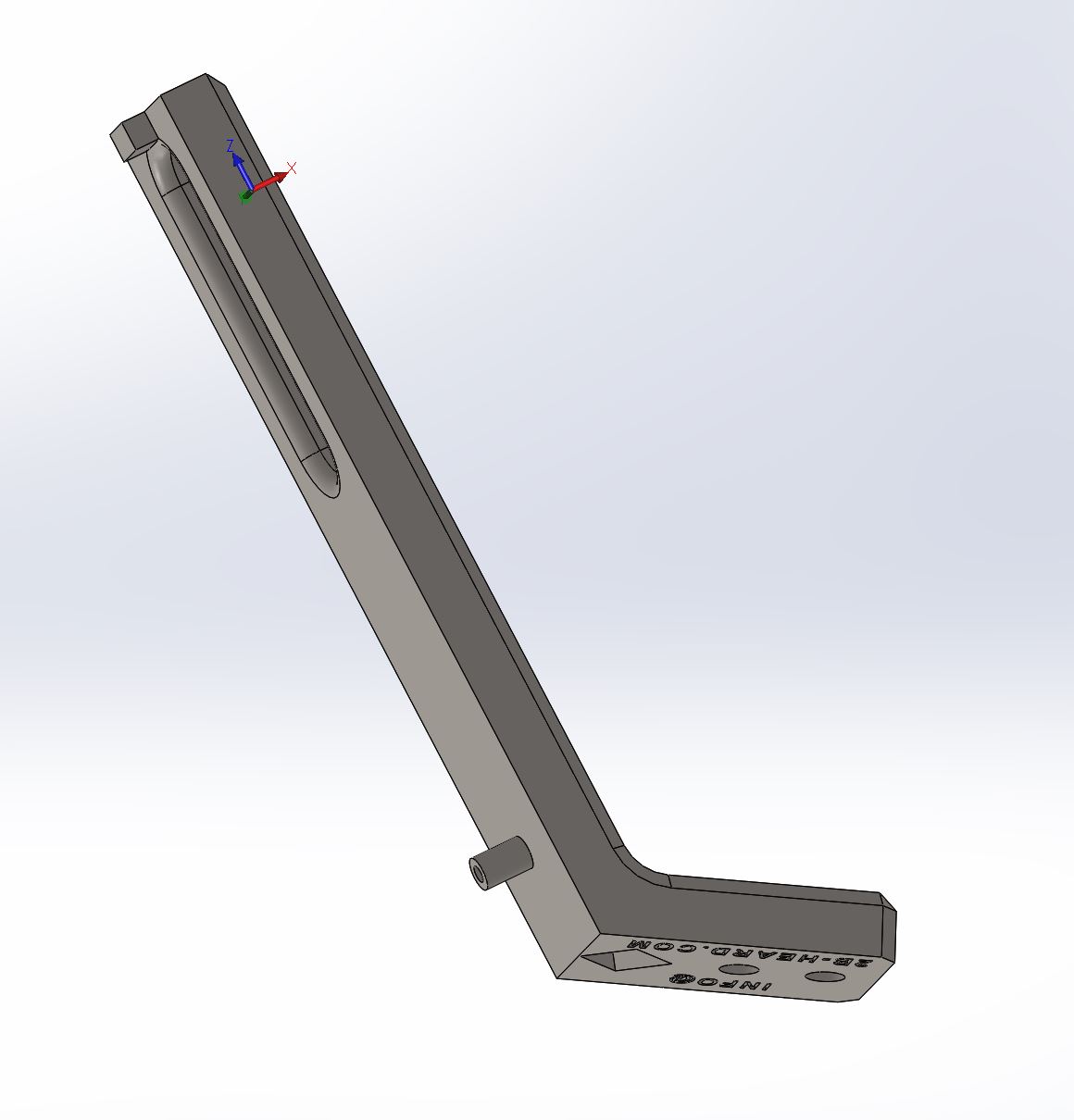

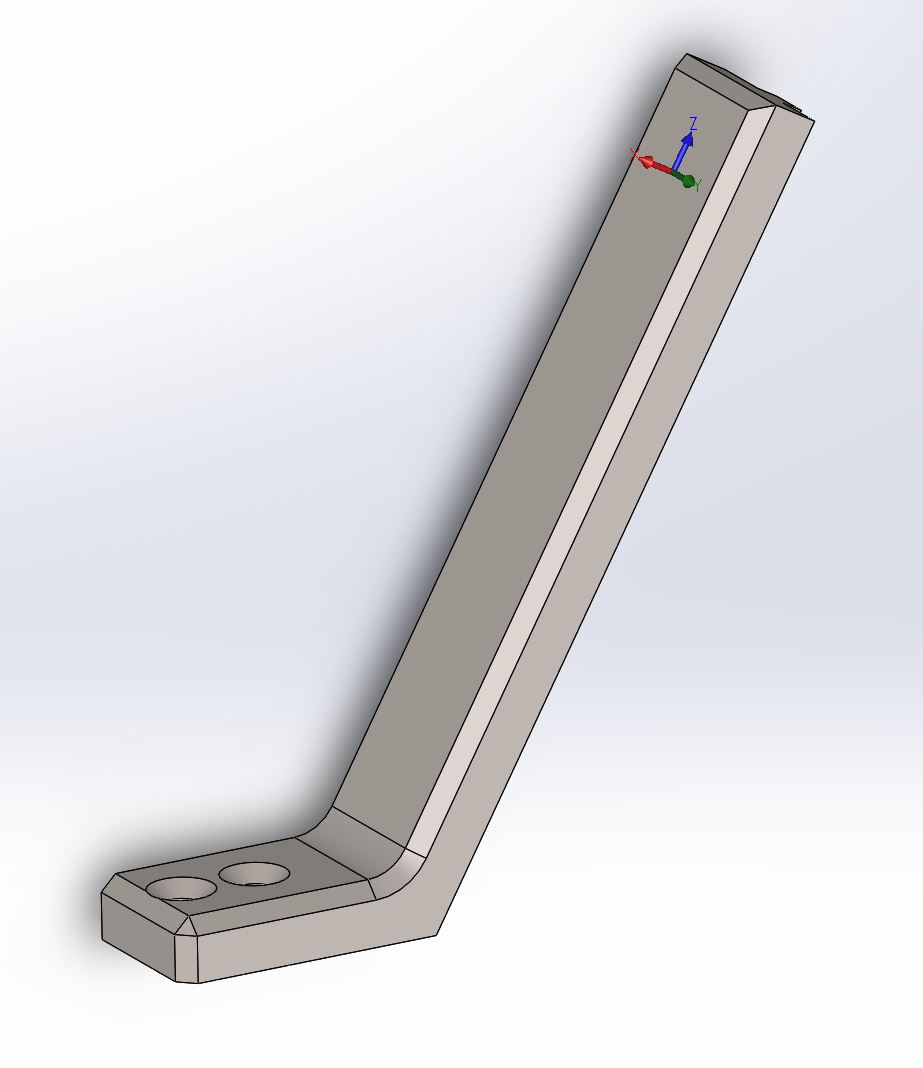

KZ14 Surface Mount
For mounting KZ14 loudspeakers to horizontal surfaces at client-specified vertical offset angles
125mm x 39mm x 22mm @ 15g

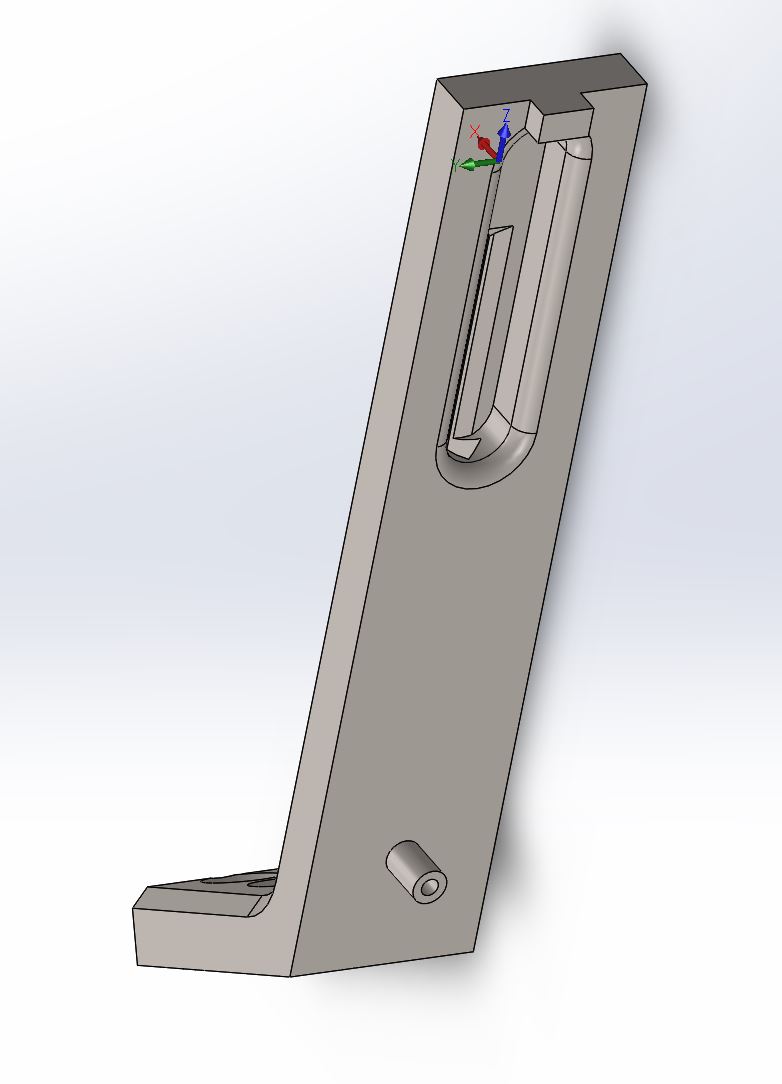

Removal of KZ14’s front grille reveals one mounting hole through which the loudspeaker can be fixed to the bracket with a 4mm∅ / Imperial size 8 screw (NOT supplied). The other end is held securely in place by the bracket’s integral retaining lug. The complete assembly is then fitted to the horizontal surface.
When ordering, please specify:
* Horizontal pan angle (if necessary – for instance, if bracket itself cannot be positioned at required angle)
* Vertical tilt angle
* Colour (if ordering the RAL option)
